2710 Staple Guard



There is no video for
2710 Staple Guard

PRODUCT DESCRIPTION

rFOIL Staple Guard Reflective Insulation 2710 Series is ideal for post-frame applications, or whenever the insulation is stapled to wood. It provides superior tear resistance, helps control condensation, and dramatically reduces the radiant heat gain/loss in buildings. Adding rFOIL Staple Guard to your construction project improves the insulation value of the building envelope and significantly increases it’s energy efficiency. rFOIL Staple Guard has a Class 1/A Fire Rating (ASTM E-84), and is tested for UV-resistance under ASTMG-154 (2,000 hours).

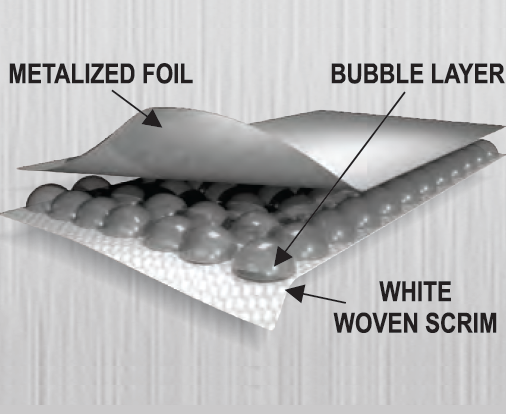

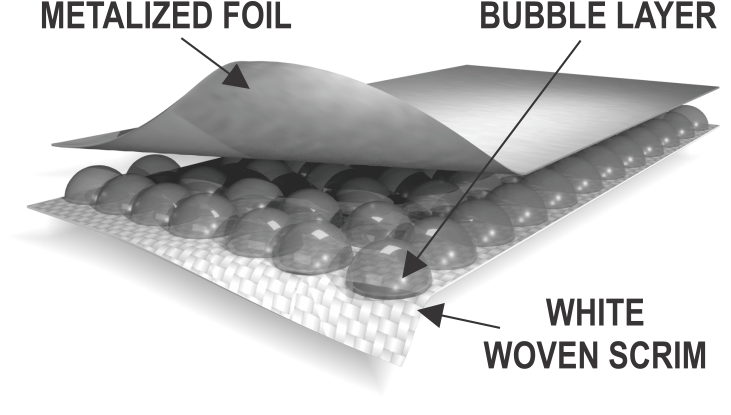

rFOIL Staple Guard Reflective Insulation is specifically designed to stay in place, and withstand windy conditions, when stapled to wood purlins, framing, or decking. rFOIL Staple Guard is comprised of a super-strong white woven scrim, bonded to a heavy duty bubble layer and a highly reflective radiant barrier film. The white layer is a durable, UV-Protected white woven scrim facing.

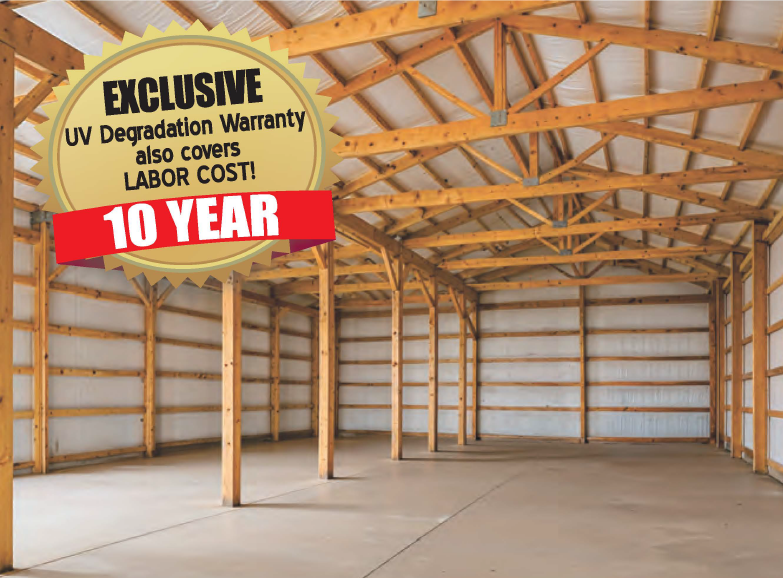

rFOIL® Staple Guard Reflective Insulation  comes with an unmatched 10 Year Guarantee against ultraviolet light degradation, delamination, cracking, peeling or flaking. The guarantee includes new material and up to $0.75 per square foot for any labor replacement costs



Benefits


  • Super Strong and Durable Woven Scrim Surface
  • Tear and Puncture Resistant
  • Holds in Place when Fastened
  • Resistant to Wind
  • Coated Surface Resists Dirt
  • Easy to Clean White Facing
  • Prevents Interior Condensation
  • Safe, Non-itch Material
  • Reduces Radiant Heat Transfer
  • Lowers Heating/Cooling Costs
  • Simple Installation w/Quick Seam Tape
  • Reflective Surface blocks 96% of Radiant Heat Gain
  • Will Not Promote Mold and Mildew
  • Thermal Performance Unaffected by Moisture or Humidity

Resources

Options

- Staple Guard Comes with a Metal Film on one side and a white polyethylene film on the other.  There are multiple tab options for increased flexibility.

- Square Edge

- Single Tab 1 Side

- Quick Seam Adhesive Strip

Staple Guard Comes in four standard roll sizes: 48" x 125', 50" x 125', 72" x 125' and 74" x 125'.

Product Documents

View 2710 Staple Guard Brochure
View 2710 Technical Data Sheet
View 2710 Staple Guard Warranty

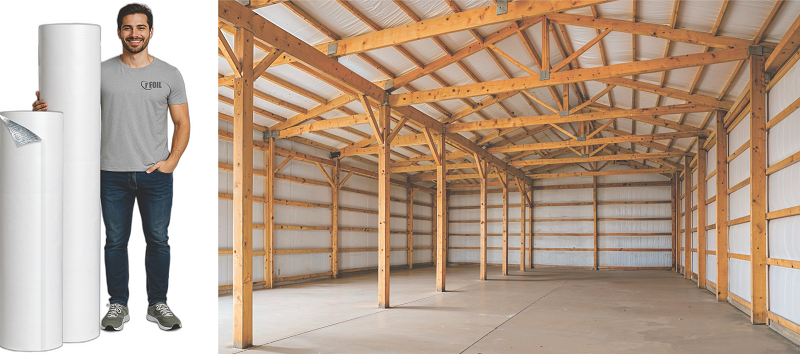

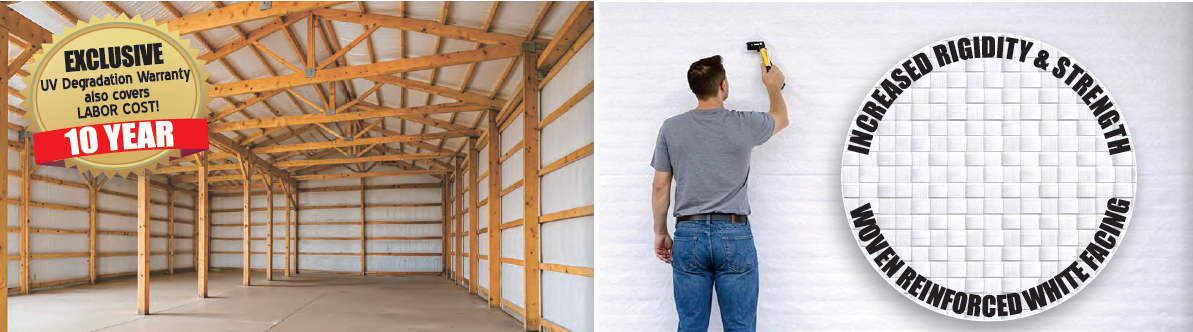

Applications for Staple Guard Reflective Insulation
  • Post Frame / Pole Barns
  • Residential Metal Roofs
  • Agricultural Buildings
  • Livestock Confinement
  • Sheds & Mini Storage
